GPU

AMD Radeon™ RX 6900 XT Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture

Engine Clock

Boost Clock: Up to 2425 MHz
Game Clock: Up to 2235 MHz

One Click TOXIC BOOST Up to 2500 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

5120

Infinity Cache

128MB

Ray Accelerators

Memory Size/Bus

16GB GDDR6

Memory Clock

BIOS Default: 16 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320
DisplayPort1.4: 7680×4320

Interface

PCI-Express 4.0

Output

1x HDMI
3x DisplayPort

BIOS Support

Dual UEFI

Game Index

Sapphire Features

Dual BIOS
Max Boost
TriXX Software Switch
Premium Digital Power Design
Fuse Protection
TOXIC Air Cooled Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Backplate with ARGB
ARGB Fans
Two-Ball Bearing Fans
Hybrid Fan Blade
Wave Fin Design
V Shape Fin Design for GPU Cooling
Integrated Cooling Module
K6.5 Memory Pad
TriXX Supported
Fan Check
Fan Quick Connect
TriXX Boost
NITRO Glow
External RGB LED MB Synchronization

AMD Features

AMD RDNA™ 2 Gaming Architecture
DirectX® 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI® Express 4.0 Support
AMD FreeSync™ Technology
DisplayPort™ 1.4 with DSC
HDMI™
Video Streaming up to 8K
Radeon™ VR Ready Premium
AMD FidelityFX
Radeon™ Image Sharpening
Radeon™ Anti-Lag
Radeon™ Software
Game Driver Optimizations
High Performance 4K Gaming

Cooling

TOXIC Air Cooled Tri-X Cooling Technology
Two-Ball Bearing Fans

Form Factor

3 slot, ATX
Dimension: 320(L)X 134.85(W)X 58.4 (H)mm

Power Consumption

<400W

OS

Linux®, Windows® 7*, Windows® 10, and Windows 8.1. 64-bit operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

Minimum 850 Watt Power Supply
2 x 8-pin + 1 x 6-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

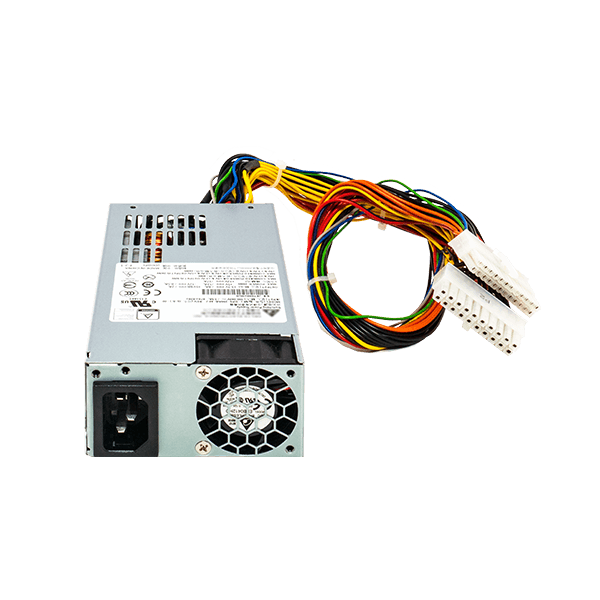

Qnap 250w Delta Power Supply
